SR2010-G - Schottky Barrier Rectifier

Product Overview

Comchip Technology

Part number	SR2010-G
Manufacturer	Comchip Technology
File Size	69.59 KB
Description	Schottky Barrier Rectifier
Datasheet	SR2010-G Datasheet
Note	This datasheet PDF includes multiple part numbers: SR2010-G, SR202-G. Please refer to the document for exact specifications by model.

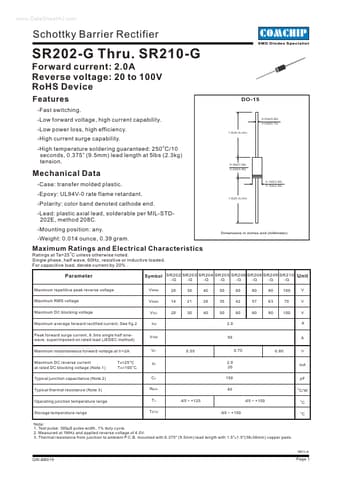

Additional preview pages of the SR2010-G datasheet.

-Fast switching. -Low forward voltage, high current capability. -Low power loss, high efficiency. -High current surge capability. -High temperature soldering guaranteed: 250 OC/10 seconds, 0.375” (9.5mm) lead length at 5lbs (2.3kg) tension. 1.0(25.4) min. 0.034(0.90) 0.028(0.70) DO-15 0.300(7.60) 0.230(5.80) Mechanical Data -Case: transfer molded plastic. -Epoxy: UL94V-0 rate flame retardant. 0.140(3.60) 0.104(2.60) 1.0(25.4) min. -Polarity: color band denoted cathode end. -Lead: plastic a.
