SR20C60CF-G, SR20C20CF-G, Schottky Barrier Rectifier

www.DataSheet4U.com Schottky Barrier Rectifiers SR20C20CF-G Thru SR20C100CF-G Reverse Voltage: 20 ~ 100 Volts Current: 20.0 Amp .

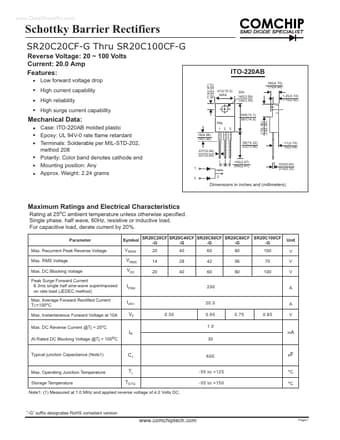

datasheet Preview Page 1 from Datasheet4u.com

SR20C20CF-G_ComchipTechnology.pdf

SR20C60CF-G Datasheet Preview — This datasheet PDF includes multiple part numbers: SR20C60CF-G, SR20C20CF-G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SR20C60CF-G, SR20C20CF-G

Manufacturer:

Comchip Technology

File Size:

78.17 KB

Description:

Schottky Barrier Rectifier

Note:

This datasheet PDF includes multiple part numbers: SR20C60CF-G, SR20C20CF-G.
Please refer to the document for exact specifications by model.

Features

* Low forward voltage drop High current capability High reliability High surge current capability PIN 1 2 3 .16(4.06) .14(3.56) .56(14.22) .53(13.46) .037(0.94) .027(0.68) .105(2.67) .095(2.41) case 2 .025(0.64) .014(0.35) .113(2.87) .103(2.62) .412(10.5) MAX DIA .140(3.56) .130(3.30) ITO-220AB .185
