SR305-G, SR302-G Datasheet - Comchip Technology

SR305-G Schottky Barrier Rectifier

SR305-G Features

* -Fast switching. -Low forward voltage, high current capability. -Low power loss, high efficiency. -High current surge capability. -High temperature soldering guaranteed: 250 OC/10 seconds, 0.375” (9.5mm) lead length at 5lbs (2.3kg) tension. 1.0(25.4) min. 0.052(1.30) 0.048(1.20) DO-27 0.375(9.50)

SR302-G_ComchipTechnology.pdf

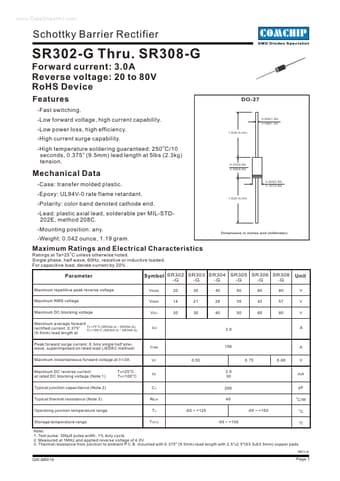

SR305-G Datasheet Preview — This datasheet PDF includes multiple part numbers: SR305-G, SR302-G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SR305-G, SR302-G

Manufacturer:

Comchip Technology

File Size:

71.80 KB

Description:

Schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: SR305-G, SR302-G.
Please refer to the document for exact specifications by model.
