SS36-G - SMD Schottky Barrier Rectifier

This page provides the datasheet information for the SS36-G, a member of the SS310-G SMD Schottky Barrier Rectifier family.

Features

  • Ideal for surface mount.

📥 Download Datasheet

Datasheet preview – SS36-G

Datasheet Details

Part number SS36-G
Manufacturer Comchip Technology
File Size 137.55 KB
Description SMD Schottky Barrier Rectifier
Datasheet download datasheet SS36-G Datasheet

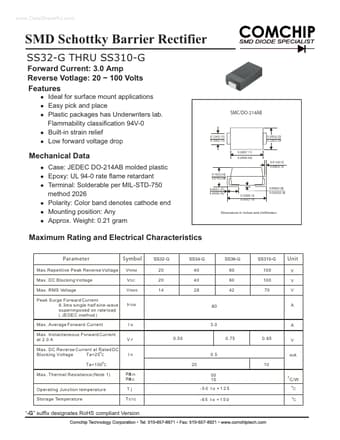

Additional preview pages of the SS36-G datasheet.

📁 Similar Datasheet

  • SS36 - SCHOTTKY BARRIER RECTIFIERS (SEMTECH)
  • SS36 - 3A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Frontier Electronics)
  • SS36 - 3.0 Amps. Surface Mount Schottky Barrier Rectifiers (JGD)
  • SS36 - 3.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
  • SS36 - 3.0A Surface Mount Schottky Barrier Rectifier (SEP ELECTRONIC)
  • SS36 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Suntan)
  • SS36 - Surface Mount Schottky Barrier Rectifier (Taiwan Semiconductor)
  • SS36 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (YS)
  • SS36 - Surface Mount Schottky Barrier Rectifier (Vishay)
  • SS36 - SCHOTTKY BARRIER RECTIFIERS (GME)
Other Datasheets by Comchip Technology
  • SS310-G - SMD Schottky Barrier Rectifier
  • SS32-G - SMD Schottky Barrier Rectifier
  • SS34-G - SMD Schottky Barrier Rectifier

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com SMD Schottky Barrier Rectifier SS32-G THRU SS310-G Forward Current: 3.0 Amp Reverse Votlage: 20 ~ 100 Volts Features Ideal for surface mount applications Easy pick and place Plastic packages has Underwriters lab. Flammability classification 94V-0 Built-in strain relief Low forward voltage drop SMC/DO-214AB 0.124(3.15) 0.108(2.75) 0.280(7.11) 0.260(6.60) 0.245(6.22 ) 0.220(5.59 ) Mechanical Data Case: JEDEC DO-214AB molded plastic Epoxy: UL 94-0 rate flame retardant Terminal: Solderable per MIL-STD-750 method 2026 Polarity: Color band denotes cathode end Mounting position: Any Approx. Weight: 0.21 gram 0.103(2.62 ) 0.079(2.00 ) 0.050(1.27) 0.030(0.76) 0.012(0.31 ) 0.006(0.15 ) 0.320(8.13 ) 0.305(7.75 ) 0.008(0.20 ) 0.0203(0.
