TV30C101J, TV3 SMD Transient Voltage Suppressor

TV30C101J Description

SMD Transient Voltage Suppressor COMCHIP www.comchip.com.tw TV30C5V0 Thru TV30C171 Working Peak Reverse Voltage: 5.0 - 170 Volts Power Dissipation: .

TV30C101J Applications

* Easy pick and place Plastic package has Underwriters Lab. flammability classification 94V-0 Typical IR less than 1uA above 10V Fast reponse time: typically less 1nS for uni-direction, less than 5nS for bidirectiona, from 0 V to BV min. SMC/DO-214AB 0.124(3.15) 0.108(2.75) 0.280(7.11) 0.260(6.60)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TV30C101J, TV3. Please refer to the document for exact specifications by model.

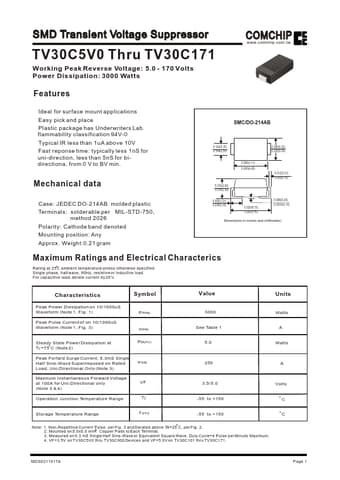

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TV30C101J, TV3
Manufacturer
Comchip Technology
File Size
97.58 KB
Datasheet
TV3-0C1.pdf
Description
SMD Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: TV30C101J, TV3.
Please refer to the document for exact specifications by model.
