1N5394-G, 1N5391-G Axial Silastic Guard Junction Standard Rectifier

1N5394-G Description

Axial Silastic Guard Junction Standard Rectifier 1N5391-G Thru.1N5399-G Voltage: 50 to 1000 Volts Forward Current: 1.5 Amps RoHS Device .

1N5394-G Features

* DO-15 -Low cost construction. -Low forward voltage drop. -Low reverse leakage. -High forward surge current capability. 1.0(25.4) MIN. 0.034(0.9) DIA. 0.028(0.7) -High temperature soldering guarantee: 260°C/10 seconds, 0.375" (9.5mm) lead length at 5lbs (2.3kg) tension. Mechanical Data -Case: tr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5394-G, 1N5391-G. Please refer to the document for exact specifications by model.

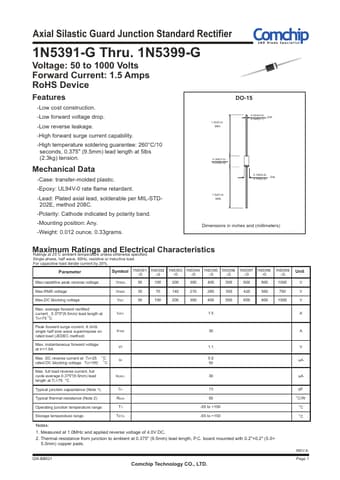

datasheet Preview Page 2

Datasheet Details

Part number
1N5394-G, 1N5391-G
Manufacturer
Comchip
File Size
45.22 KB
Datasheet
1N5391-G-Comchip.pdf
Description
Axial Silastic Guard Junction Standard Rectifier
Note
This datasheet PDF includes multiple part numbers: 1N5394-G, 1N5391-G.
Please refer to the document for exact specifications by model.
