3KP8.0CA-HF, 3KP5.0A-HF - 3000W Transient Voltage Suppressor

Comchip

Datasheet Details

Part number	3KP8.0CA-HF, 3KP5.0A-HF
Manufacturer	Comchip
File Size	182.71 KB
Description	3000W Transient Voltage Suppressor
Datasheet	3KP5.0A-HF-Comchip.pdf
Note	This datasheet PDF includes multiple part numbers: 3KP8.0CA-HF, 3KP5.0A-HF. Please refer to the document for exact specifications by model.

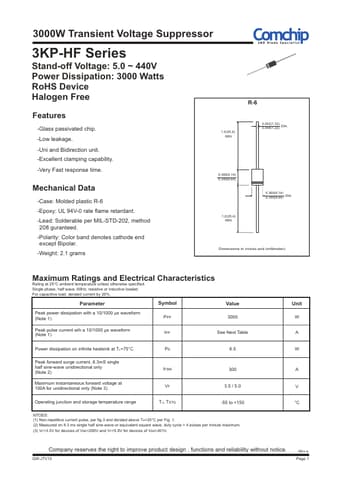

-Glass passivated chip. -Low leakage. -Uni and Bidirection unit. -Excellent clamping capability. -Very Fast response time. Mechanical Data -Case: Molded plastic R-6 -Epoxy: UL 94V-0 rate flame retardant. -Lead: Solderable per MIL-STD-202, method 208 guranteed. -Polarity: Color band denotes cathode end except Bipolar. -Weight: 2.1 grams R-6 1.0(25.4) MIN. 0.052(1.32) 0.048(1.22) DIA. 0.360(9.14) 0.340(8.64) 1.0(25.4) MIN. 0.360(9.14) 0.340(8.64) DIA. Dimensions in inches and (millimeter) M.
