5KP100A-HF, 5KP-HF - 5000W Transient Voltage Suppressor

Comchip

Datasheet Details

Part number	5KP100A-HF, 5KP-HF
Manufacturer	Comchip
File Size	90.55 KB
Description	5000W Transient Voltage Suppressor

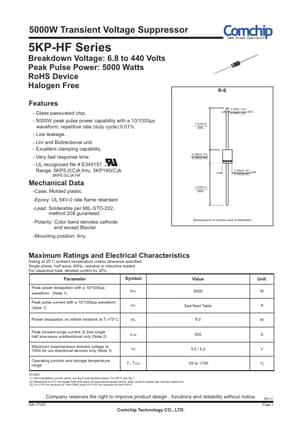

Datasheet	5KP-HF-Comchip.pdf
Note	This datasheet PDF includes multiple part numbers: 5KP100A-HF, 5KP-HF. Please refer to the document for exact specifications by model.

- Glass passivated chip. - 5000W peak pulse power capability with a 10/1000µs waveform, repetitive rate (duty cycle):0.01% - Low leakage. - Uni and Bidirectional unit. - Excellent clamping capability. - Very fast response time. - UL recognized file # E349157 R - Range: 5KP5.0(C)A thru. 5KP190(C)A 5KP5.0(C)A-HF Mechanical Data -Case: Molded plastic. -Epoxy: UL 94V-0 rate flame retardant -Lead: Solderable per MIL-STD-202, method 208 guranteed. -Polarity: Color band denotes cathode end except Bipol.
