AUSMBJ110CA-HF, AUSMBJ10A-HF Datasheet - Comchip

AUSMBJ110CA-HF, AUSMBJ10A-HF, SMD Transient Voltage Suppressor

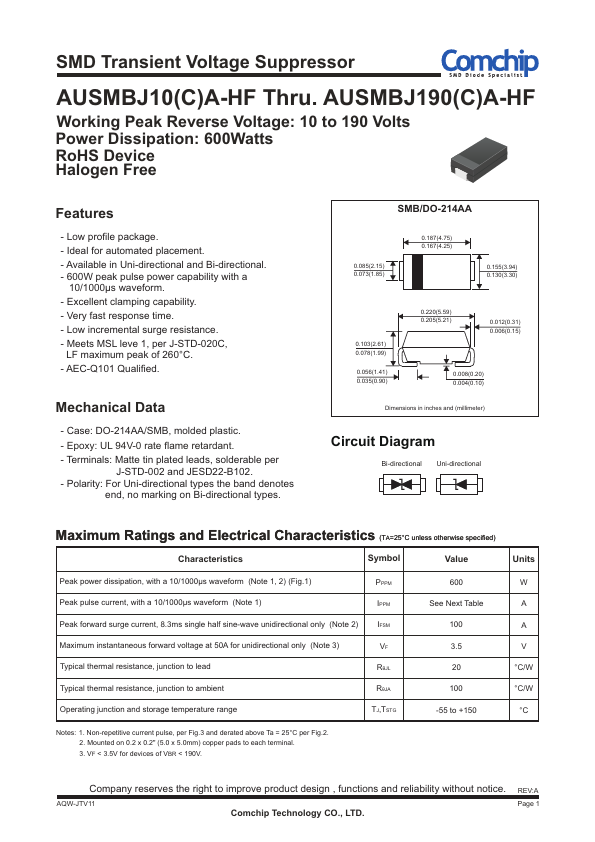

SMD Transient Voltage Suppressor AUSMBJ10(C)A-HF Thru.AUSMBJ190(C)A-HF Working Peak Reverse Voltage: 10 to 190 Volts Power Dissipation: 600Watts RoHS.

AUSMBJ10A-HF-Comchip.pdf

AUSMBJ110CA-HF Datasheet Preview — This datasheet PDF includes multiple part numbers: AUSMBJ110CA-HF, AUSMBJ10A-HF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AUSMBJ110CA-HF, AUSMBJ10A-HF

Manufacturer:

Comchip

File Size:

474.21 KB

Description:

SMD Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: AUSMBJ110CA-HF, AUSMBJ10A-HF.
Please refer to the document for exact specifications by model.

Features

* - Low proﬁle package. - Ideal for automated placement. - Available in Uni-directional and Bi-directional. - 600W peak pulse power capability with a 10/1000µs waveform. - Excellent clamping capability. - Very fast response time. - Low incremental surge resistance. - Meets MSL leve 1, per J-STD-020C,
