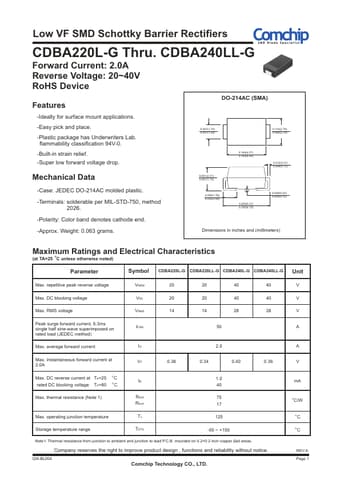

Low VF SMD Schottky Barrier Rectifiers
CDBA220L-G Thru. CDBA240LL-G
Forward Current: 2.0A Reverse Voltage: 20~40V RoHS Device
Features
DO-214AC (SMA)
-Ideally for surface mount applications.
-Easy pick and place.
-Plastic package has Underwriters Lab. flammability classification 94V-0. -Built-in strain relief. -Super low forward voltage drop.
0.067(1.70) 0.051(1.29)
0.180(4.57) 0.160(4.06)
0.110(2.79) 0.086(2.18)
0.012(0.31) 0.006(0.15)
Mechanical Data
0.091(2.31) 0.067(1.70)
-Case: JEDEC DO-214AC molded plastic.
-Terminals: solderable per MIL-STD-750, method 2026.
0.059(1.50) 0.035(0.89)
0.209(5.31) 0.185(4.70)
0.008(0.20) 0.004(0.10)
-Polarity: Color band denotes cathode end.
-Approx. Weight: 0.063 grams.
CDBA220L-G Datasheet
