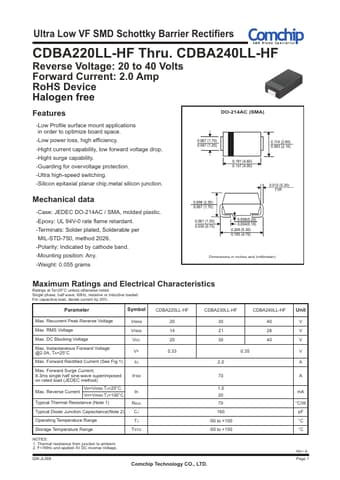

Ultra Low VF SMD Schottky Barrier Rectifiers
CDBA220LL-HF Thru. CDBA240LL-HF
Reverse Voltage: 20 to 40 Volts Forward Current: 2.0 Amp RoHS Device Halogen free
Features
-Low Profile surface mount applications in order to optimize board space. -Low power loss, high efficiency. -Hight current capability, low forward voltage drop. -Hight surge capability. -Guarding for overvoltage protection. -Ultra high-speed switching. -Silicon epitaxial planar chip,metal silicon junction.
Mechanical data
-Case: JEDEC DO-214AC / SMA, molded plastic. -Epoxy: UL 94V-0 rate flame retardant. -Terminals: Solder plated, Solderable per -MIL-STD-750, method 2026. -Polarity: Indicated by cathode band. -Mounting position: Any. -Weight: 0.055 grams
DO-214AC (SMA)
0.067 (1.70) 0.047 (1.20)
0.181 (4.60) 0.157 (4.
CDBA220LL-HF Datasheet
