CDBB360-HF - SMD Schottky Barrier Rectifiers

Download the CDBB360-HF datasheet PDF. This datasheet also covers the CDBB340-HF variant, as both devices belong to the same smd schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • - Low Profile surface mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CDBB340-HF-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CDBB360-HF
Manufacturer Comchip
File Size 96.39 KB
Description SMD Schottky Barrier Rectifiers
Datasheet download datasheet CDBB360-HF Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CDBB360-G (CDBB320-G - CDBB3100-G) SMD Schottky Barrier Rectifiers Comchip Technology
CDBB360 SMD Schottky Barrier Rectifier Comchip Technology
CDBB3100 SMD Schottky Barrier Rectifier Comchip Technology
CDBB3100-G (CDBB320-G - CDBB3100-G) SMD Schottky Barrier Rectifiers Comchip Technology
CDBB320 SMD Schottky Barrier Rectifier Comchip Technology

Other Datasheets by Comchip

Part Number Description
CDBB3100-HF SMD Schottky Barrier Rectifiers
CDBB340-HF SMD Schottky Barrier Rectifiers
CDBB5100-HF SMD Schottky Barrier Rectifiers
CDBB540-HF SMD Schottky Barrier Rectifiers
CDBB560-HF SMD Schottky Barrier Rectifiers

Full PDF Text Transcription

Click to expand full text

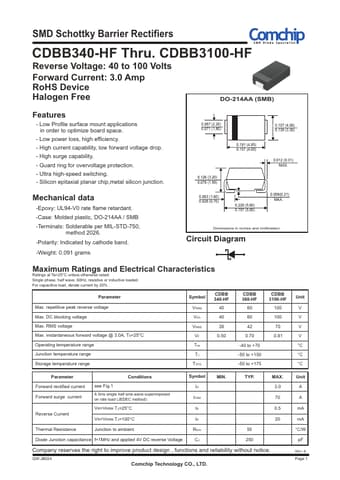

SMD Schottky Barrier Rectifiers CDBB340-HF Thru. CDBB3100-HF Reverse Voltage: 40 to 100 Volts Forward Current: 3.0 Amp RoHS Device Halogen Free DO-214AA (SMB) Features - Low Profile surface mount applications in order to optimize board space. - Low power loss, high efficiency. - High current capability, low forward voltage drop. - High surge capability. - Guard ring for overvoltage protection. - Ultra high-speed switching. - Silicon epitaxial planar chip,metal silicon junction. Mechanical data -Epoxy: UL94-V0 rate flame retardant. -Case: Molded plastic, DO-214AA / SMB -Terminals: Solderable per MIL-STD-750, method 2026. -Polarity: Indicated by cathode band. -Weight: 0.091 grams 0.087 (2.20) 0.071 (1.80) 0.126 (3.20) 0.078 (1.99) 0.063 (1.60) 0.028 (0.70) 0.191 (4.85) 0.157 (4.00) 0.
