CDBQR0140R-HF - SMD Schottky Barrier Diode

Name: CDBQR0140R-HF
SKU: CDBQR0140R-HF-727021

Comchip

The CDBQR0140R-HF by Comchip is a SMD Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	CDBQR0140R-HF
Manufacturer	Comchip
File Size	173.31 KB
Description	SMD Schottky Barrier Diode
Datasheet	CDBQR0140R-HF_Comchip.pdf

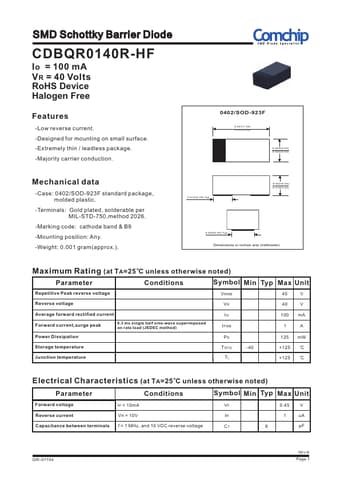

Additional preview pages of the CDBQR0140R-HF datasheet.

-Low reverse current. -Designed for mounting on small surface. -Extremely thin / leadless package. -Majority carrier conduction. 0.026(0.65) 0.022(0.55) 0402/SOD-923F 0.041(1.05) 0.037(0.95) Mechanical data -Case: 0402/SOD-923F standard package, molded plastic. -Terminals: Gold plated, solderable per MIL-STD-750,method 2026. -Marking code: cathode band & B9 0.020(0.50) Typ. 0.012(0.30) Typ. 0.022(0.55) 0.018(0.45) -Mounting position: Any. -Weight: 0.001 gram(approx. ). Dimensions in inches an.
