CEFA104-HF, CEFA101-HF SMD Efficiency Fast Recovery Rectifiers

Comchip

Description

SMD Efficiency Fast Recovery Rectifiers CEFA101-HF thru.CEFA105-HF Reverse Voltage: 50 to 600 Volts Forward Current: 1.0 Amp RoHS Device Halogen Fr.

📥 Download Datasheet

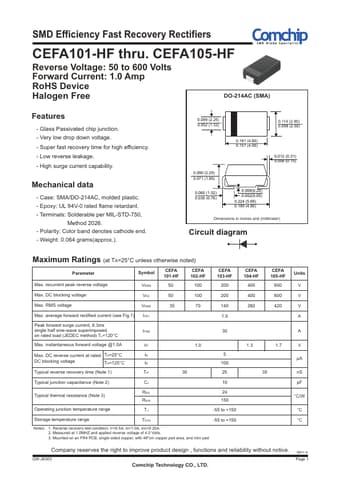

CEFA104-HF Datasheet Preview — This datasheet PDF includes multiple part numbers: CEFA104-HF, CEFA101-HF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CEFA104-HF, CEFA101-HF
Manufacturer: Comchip
File Size: 85.21 KB
Datasheet: CEFA101-HF-Comchip.pdf
Description: SMD Efficiency Fast Recovery Rectifiers
Note: This datasheet PDF includes multiple part numbers: CEFA104-HF, CEFA101-HF.
Please refer to the document for exact specifications by model.

Features

* - Glass Passivated chip junction. - Very low drop down voltage. - Super fast recovery time for high efficiency. - Low reverse leakage. - High surge current capability. Mechanical data - Case: SMA/DO-214AC, molded plastic. - Epoxy: UL 94V-0 rated flame retardant. - Terminals: Solderable per MIL-STD-7
