DB101-G - Glass Passivated Bridge Rectifiers

DB101-G Description

Glass Passivated Bridge Rectifiers DB101-G Thru.DB107-G Reverse Voltage: 50 to 1000V Forward Current: 1.0A RoHS Device .

DB101-G Features

* -Rating to 1000V PRV. -Ideal for printed circuit board. -Low forward voltage drop. -High current capability. -The plastic material has UL flammability classification 94V-0 -UL recognized file # E349301 R Mechanical Data -Polarity: As marked on Body. -Weight: 0.38 grams. -Mounting position: Any. DB

📥 Download Datasheet

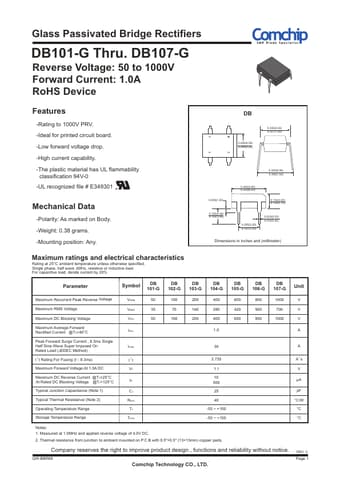

Preview of DB101-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DB101-G
Manufacturer
Comchip
File Size
59.93 KB
Datasheet
DB101-G-Comchip.pdf
Description
Glass Passivated Bridge Rectifiers
