DB102-G - Glass Passivated Bridge Rectifiers

Product Overview

Comchip

Part number	DB102-G
Manufacturer	Comchip
File Size	59.93 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	DB102-G Datasheet
Note	This datasheet PDF includes multiple part numbers: DB102-G, DB101-G. Please refer to the document for exact specifications by model.

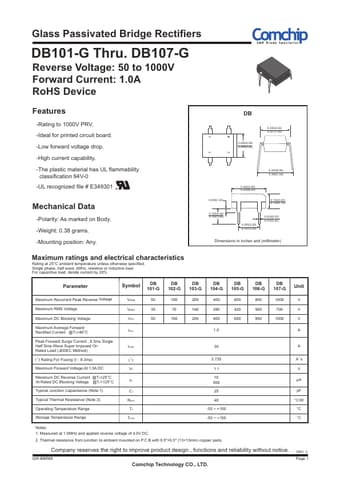

Additional preview pages of the DB102-G datasheet.

-Rating to 1000V PRV. -Ideal for printed circuit board. -Low forward voltage drop. -High current capability. -The plastic material has UL flammability classification 94V-0 -UL recognized file # E349301 R Mechanical Data -Polarity: As marked on Body. -Weight: 0.38 grams. -Mounting position: Any. DB -+ 0.335(8.50) 0.307(7.80) 0.256(6.50) 0.244(6.20) ~~ 0.350(8.90) 0.300(7.60) 0.059(1.50) 0.193(4.90) 0.155(3.90) 0.346(8.80) 0.323(8.20) 0.134(3.40) 0.124(3.15) 0.205(5.20) 0.197(5.00) 0.022.
