DB102S-G - SMD Glass Passivated Bridge Rectifiers

Product Overview

Comchip

Part number	DB102S-G
Manufacturer	Comchip
File Size	40.48 KB
Description	SMD Glass Passivated Bridge Rectifiers
Datasheet	DB102S-G Datasheet
Note	This datasheet PDF includes multiple part numbers: DB102S-G, DB101S-G. Please refer to the document for exact specifications by model.

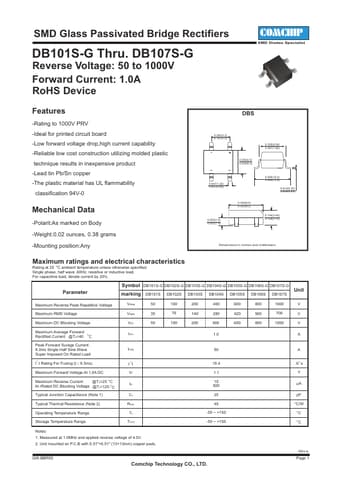

Additional preview pages of the DB102S-G datasheet.

-Rating to 1000V PRV -Ideal for printed circuit board -Low forward voltage drop,high current capability -Reliable low cost construction utilizing molded plastic technique results in inexpensive product -Lead tin Pb/Sn copper -The plastic material has UL flammability classification 94V-0 Mechanical Data -Polarit:As marked on Body -Weight:0.02 ounces, 0.38 grams -Mounting position:Any DBS 0.205(5.2) 0.197(5.0) -+ 0.256(6.5) 0.244(6.2) ~~ 0.047(1.20) 0.037(0.95) 0.063(1.6) 0.055(1.4) 0.346(8.8).
