DB103-G, DB101-G - Glass Passivated Bridge Rectifiers

DB103-G Description

Glass Passivated Bridge Rectifiers DB101-G Thru.DB107-G Reverse Voltage: 50 to 1000V Forward Current: 1.0A RoHS Device .

DB103-G Features

* -Rating to 1000V PRV. -Ideal for printed circuit board. -Low forward voltage drop. -High current capability. -The plastic material has UL flammability classification 94V-0 -UL recognized file # E349301 R Mechanical Data -Polarity: As marked on Body. -Weight: 0.38 grams. -Mounting position: Any. DB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB103-G, DB101-G. Please refer to the document for exact specifications by model.

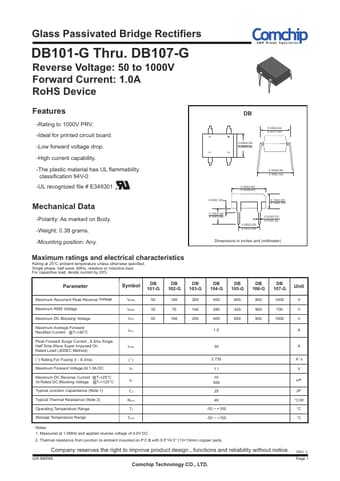

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DB103-G, DB101-G
Manufacturer
Comchip
File Size
59.93 KB
Datasheet
DB101-G-Comchip.pdf
Description
Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: DB103-G, DB101-G.
Please refer to the document for exact specifications by model.
