DB106S-G, DB101S-G - SMD Glass Passivated Bridge Rectifiers

DB106S-G Description

SMD Glass Passivated Bridge Rectifiers DB101S-G Thru.DB107S-G Reverse Voltage: 50 to 1000V Forward Current: 1.0A RoHS Device COMCHIP SMD Diodes Spec.

DB106S-G Features

* -Rating to 1000V PRV -Ideal for printed circuit board -Low forward voltage drop,high current capability -Reliable low cost construction utilizing molded plastic technique results in inexpensive product -Lead tin Pb/Sn copper -The plastic material has UL flammability classification 94V-0 Mechanical D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB106S-G, DB101S-G. Please refer to the document for exact specifications by model.

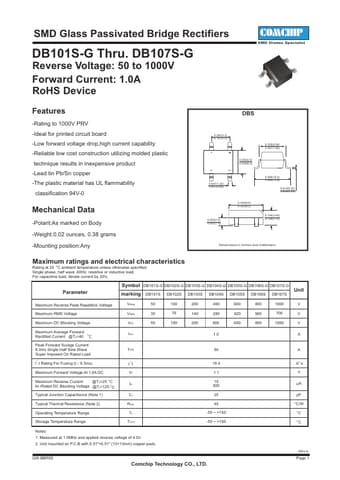

datasheet Preview Page 2

Datasheet Details

Part number
DB106S-G, DB101S-G
Manufacturer
Comchip
File Size
40.48 KB
Datasheet
DB101S-G-Comchip.pdf
Description
SMD Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: DB106S-G, DB101S-G.
Please refer to the document for exact specifications by model.
