DF06-G

Surface Mount Glass Passivated Bridge Rectifiers

DF06-G Features

* -Rating to 1000V PRV. -Ideal for printed circuit board. -Low forward voltage drop. -High current capability. -The plastic material has UL flammability classification 94V-0 -UL recognized file # E349301 R Mechanical Data -Polarity: As marked on Body. -Weight: 0.38 grams. -Mounting position: Any. DF

DF06-G Datasheet (62.53 KB)

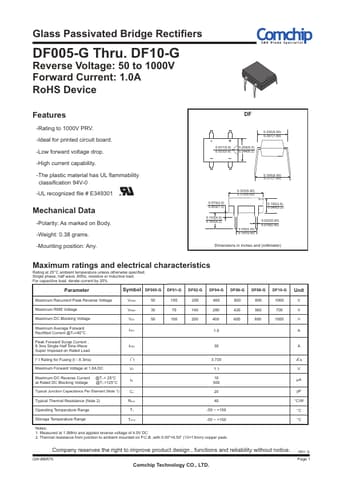

Preview of DF06-G PDF

Datasheet Details

Part number:

DF06-G

Manufacturer:

Comchip

File Size:

62.53 KB

Description:

Surface mount glass passivated bridge rectifiers.
