GBJ10005-G - Glass Passivated Bridge Rectifiers

Product Overview

Comchip

Part number	GBJ10005-G
Manufacturer	Comchip
File Size	69.98 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	GBJ10005-G Datasheet

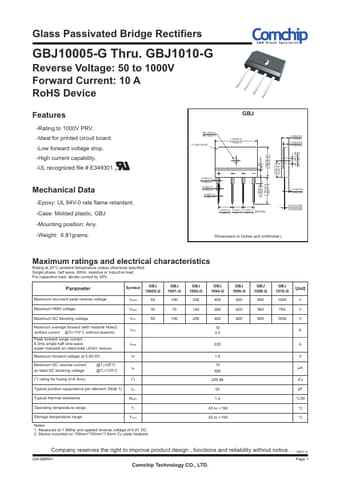

Additional preview pages of the GBJ10005-G datasheet.

-Rating to 1000V PRV. -Ideal for printed circuit board. -Low forward voltage drop. -High current capability. -UL recognized file # E349301 R Mechanical Data -Epoxy: UL 94V-0 rate flame retardant. -Case: Molded plastic, GBJ -Mounting position: Any. -Weight: 6.81grams. GBJ Φ0.134(3.4) Φ0.122(3.1) 0.118(3.00).
45° 1.193(30.3) 1.169(29.7) MAX 0.198 (5.1) 0.106(2.7) 0.096(2.3) + 0.094(2.4) 0.078(2.0) 0.043(1.1) 0.035(0.9) ~~_ 0.402(10.2) 0.386(9.8) 0.303(7.7) 0.287(7.3) 0.303(7.7) 0.2.
