GBL005-G - Glass Passivated Bridge Rectifiers

GBL005-G Description

Glass Passivated Bridge Rectifiers GBL005-G Thru.GBL10-G Reverse Voltage: 50 to 1000V Forward Current: 4.0A RoHS Device .

GBL005-G Features

* -Rating to 1000V PRV -Surge overload rating - 125 amperes peak. Mechanical Data -Epoxy: U/L 94-V0 rate flame retardant. -Case: Molded plastic, 2GBJ -Polarit:As marked on Body -Mounting position: Any -Weight: 2.151grams 2GBJ 0.098(2.5)
* 45° Cha mfer 0.81(20.6) 0.77(19.6) 0.106(2.7) 0.091(2.3)

📥 Download Datasheet

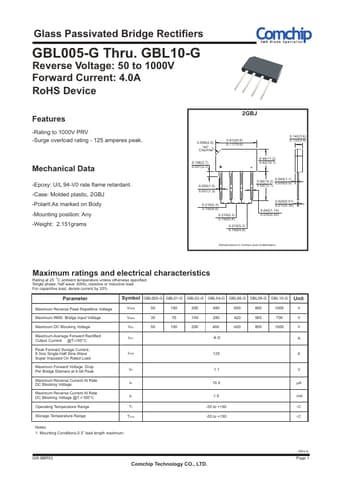

Preview of GBL005-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBL005-G
Manufacturer
Comchip
File Size
60.84 KB
Datasheet
GBL005-G-Comchip.pdf
Description
Glass Passivated Bridge Rectifiers
