GBPC15005-G - Glass Passivated Bridge Rectifiers

GBPC15005-G Description

Glass Passivated Bridge Rectifiers Reverse Voltage: 50 to 1000V Forward Current: 15/25/35/50A RoHS Device .

GBPC15005-G Features

* -Surge overload-300~450 Amperes peak -Low forward voltage drop -Electrically isolated base -2000 Volts -Materials used carries U/L recognition G 0.94 (2.4) diam COMCHIP SMD Diodes Specialist GBPC15005-G Thru. GBPC5010-G Series GBPC METAL HEAT SINK 0.335(8.5) 0.295(7.5) 0.925(23.5) 0.886(22.5) G

📥 Download Datasheet

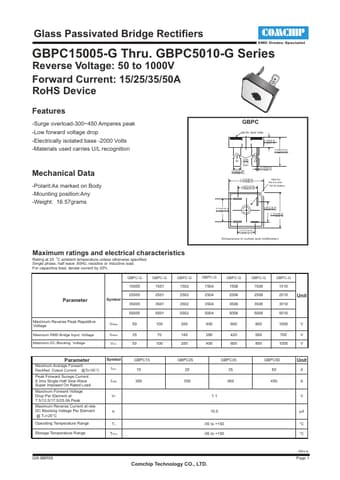

Preview of GBPC15005-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBPC15005-G
Manufacturer
Comchip
File Size
66.30 KB
Datasheet
GBPC15005-G-Comchip.pdf
Description
Glass Passivated Bridge Rectifiers
