KBPC10005-G - Silicon Bridge Rectifiers

KBPC10005-G Description

Silicon Bridge Rectifiers KBPC10005-G Thru.KBPC5010-G Series Reverse Voltage: 50 to 1000V Forward Current: 10/15/25/35/50A RoHS Device .

KBPC10005-G Features

* -Surge overload-240~500 Amperes peak -Low forward voltage drop -Electrically isolated base -2000 Volts -Materials used carries U/L recognition KBPC 0.94 (2.4) diam 0.254(6.45) 0.242(6.15) 0.442(11.23) 0.424(10.77) 0.921(23.40) 0.882(22.40) 0.035(0.90) 0.028(0.70) Mechanical Data -Polarit:As mark

📥 Download Datasheet

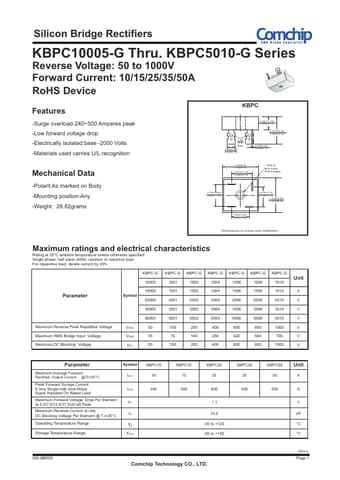

Preview of KBPC10005-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KBPC10005-G
Manufacturer
Comchip
File Size
69.68 KB
Datasheet
KBPC10005-G-Comchip.pdf
Description
Silicon Bridge Rectifiers
