KBPC10005W-G - Silicon Bridge Rectifiers

KBPC10005W-G Description

Silicon Bridge Rectifiers KBPC10005W-G Thru.KBPC5010W-G Series Reverse Voltage: 50 to 1000V Forward Current: 10/15/25/35/50A RoHS Device .

KBPC10005W-G Features

* -Surge overload-240~500 Amperes peak -Low forward voltage drop -Electrically isolated base -2000 Volts -Materials used carries U/L recognition Mechanical Data -Polarit:As marked on Body -Mounting position:Any -Weight: 25.95grams KBPC-W 0.442(11.23) 0.424(10.77) 1.20(30.5)min 1.133(28.80) 1.114(2

📥 Download Datasheet

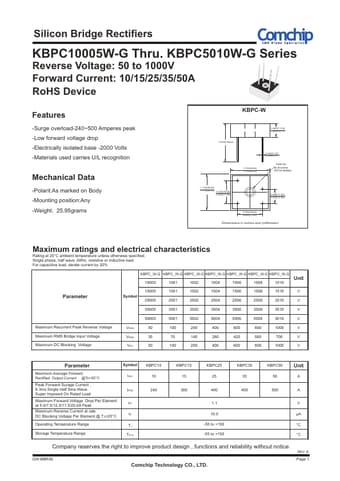

Preview of KBPC10005W-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KBPC10005W-G
Manufacturer
Comchip
File Size
109.51 KB
Datasheet
KBPC10005W-G-Comchip.pdf
Description
Silicon Bridge Rectifiers
