KBU1001-G Silicon Bridge Rectifiers

KBU1001-G Features

* -Surge overload rating - 240 amperes peak. -Ideal for printed circuit board. Mechanical Data -Epoxy: U/L 94-V0 rate flame retardant. -Case: Molded plastic, KBU -Mounting position: Any -Weight: 7.40grams 0.700(17.8) 0.600(16.8) KBU 0.157(4.0)

* 45°C 0.935(23.7) 0.895(22.7) 0.15ΦX23L (3.8ΦX5.7L)

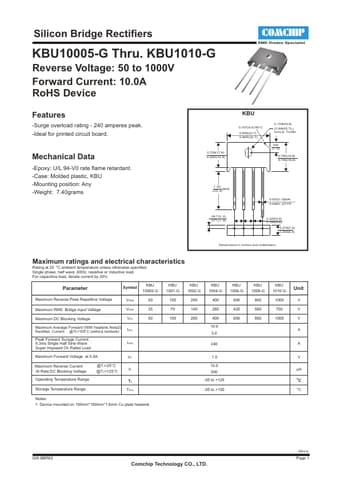

KBU10005-G-Comchip.pdf

KBU1001-G Datasheet Preview — This datasheet PDF includes multiple part numbers: KBU1001-G, KBU10005-G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KBU1001-G, KBU10005-G

Manufacturer:

Comchip

File Size:

53.67 KB

Description:

Silicon bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: KBU1001-G, KBU10005-G.
Please refer to the document for exact specifications by model.
