MB8S-G Glass Passivated Bridge Rectifiers

MB8S-G Features

* -Ideal for printed circuit board -High temperature soldering guaranteed: 260°C / 10 seconds /9.5mm Lead length at 5 lbs.,(2.3kg) tension. 0.276 (7.00)MAX 0.157 (4.00) 0.142 (3.60) - MBS 0.031 (0.84) 0.019 (0.50) + Mechanical data -Case: Molded plastic. -Lead: Solder plated. -Polarity: As marked

MB8S-G-Comchip.pdf

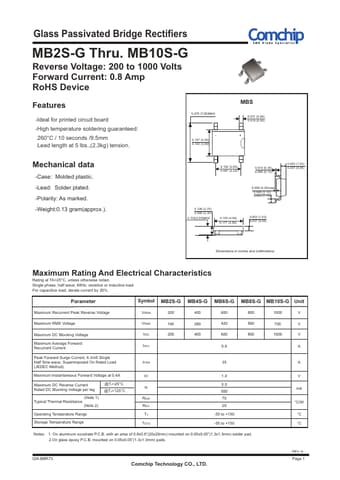

MB8S-G Datasheet Preview — Preview of MB8S-G PDF

Datasheet Details

Part number:

MB8S-G

Manufacturer:

Comchip

File Size:

83.07 KB

Description:

Glass passivated bridge rectifiers.
