UF4006-G - Ultra Fast Recovery Rectifiers

Product Overview

Comchip

Part number	UF4006-G
Manufacturer	Comchip
File Size	66.10 KB
Description	Ultra Fast Recovery Rectifiers
Datasheet	UF4006-G Datasheet
Note	This datasheet PDF includes multiple part numbers: UF4006-G, UF4001-G. Please refer to the document for exact specifications by model.

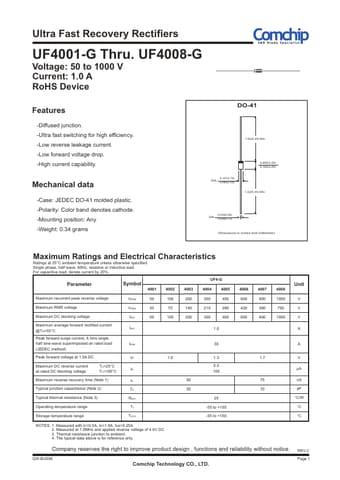

Additional preview pages of the UF4006-G datasheet.

-Diffused junction. -Ultra fast switching for high efficiency. -Low reverse leakage current. -Low forward voltage drop. -High current capability. Mechanical data -Case: JEDEC DO-41 molded plastic. -Polarity: Color band denotes cathode. -Mounting position: Any -Weight: 0.34 grams DO-41 1.0(25.40) Min. 0.107(2.70) DIA. 0.080(2.00) 0.205(5.20) 0.160(4.20) 1.0(25.40) Min. 0.034(0.90) DIA. 0.028(0.70) Dimensions in inches and (millimeter) Maximum Ratings and Electrical Characteristics Ratings a.
