6551 - ASYNCHRONOUS COMMUNICATION INTERFACE ADAPTER

6551 Description

, ..commodore ~ aamiconduct:ar group ~~@~ MPS 6551 ASSYNCH RONOUS COMMUNICATION INTERFACE ADAPTER [ 6551 ASYNCHRONOUS COMMUNICATION INTERFACE ADAPT.

6551 Features

* On-chip baud rate generator: 15 programmable baud rates derived from a standard 1.8432 M Hz external crystal (50 to 19,200 baud).
* Programmable interrupt and status register to simplify software design.
* Single +5 volt power supply.
* Serial echo mode.

📥 Download Datasheet

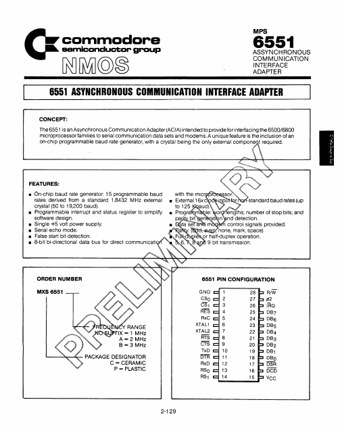

Preview of 6551 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
6551
Manufacturer
Commodore
File Size
337.36 KB
Datasheet
6551-Commodore.pdf
Description
ASYNCHRONOUS COMMUNICATION INTERFACE ADAPTER
