UF2004G, UF2001G - ULTRA FAST RECTIFIERS

UF2004G Description

ULTRA FAST GLASS PASSIVATED RECTIFIERS UF2001G thru UF2007G REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 2.0 Amperes .

UF2004G Features

* Glass passivated chip Ultra fast switching for high efficiency Low reverse leakage current Low forward voltage drop High current capability Easily cleaned with Freon, Alcohol, Chlorothene and similar solvents Plastic material has UL flammabitily classification 94V-0 MECHANICAL DATA Case : JEDEC DO-1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UF2004G, UF2001G. Please refer to the document for exact specifications by model.

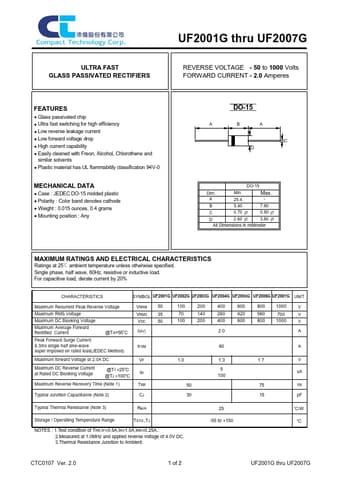

datasheet Preview Page 2

Datasheet Details

Part number
UF2004G, UF2001G
Manufacturer
Compact Technology
File Size
45.41 KB
Datasheet
UF2001G-CompactTechnology.pdf
Description
ULTRA FAST RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: UF2004G, UF2001G.
Please refer to the document for exact specifications by model.
