1N3041B Datasheet - Compensated Deuices Incorporated

1N3041B 1 WATT ZENER DIODES

1N3016B-1 thru 1N3045B-1 AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/115 1 WATT ZENER DIODES METALLURGICALLY BONDED 1N3016B thru1N3045B and 1N3016B-1 thru 1N3045B-1 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 1watt @ TL = +95°C Power Derating: 12.5 mW / °C above TL = +95°C Forward Voltage @ 200mA: 1.2 volts maximum ELECTRICAL CHARACTERISTICS @ 25°C CDI TYPE NUMBER (NOTE 1) NOMINAL ZENE.

1N3041B_CompensatedDeuicesIncorporated.pdf

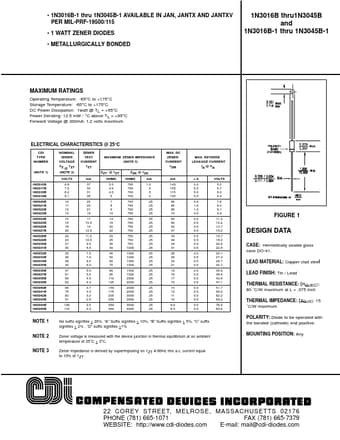

Preview of 1N3041B PDF
1N3041B Datasheet Preview Page 2

Datasheet Details

Part number:

1N3041B

Manufacturer:

Compensated Deuices Incorporated

File Size:

21.90 KB

Description:

1 watt zener diodes.
