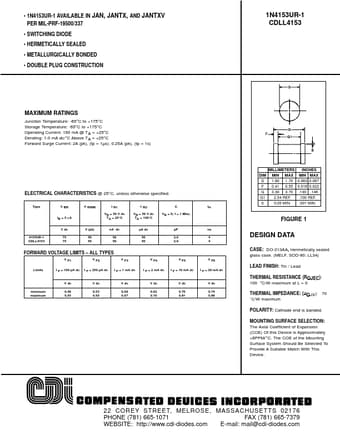

- 1N4153UR-1 AVAILABLE IN JAN, JANTX, AND JANTXV PER MIL-PRF-19500/337 - SWITCHING DIODE - HERMETICALLY SEALED - METALLURGICALLY BONDED - DOUBLE PLUG CONSTRUCTION 1N4153UR-1 CDLL4153 MAXIMUM RATINGS Junction Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C Operating Current: 150 m A @ TA = +25°C Derating: 1.0 m A dc/°C Above TA = +25°C Forward Surge Current: 2A (pk), (tp = 1µs); 0.25A (pk), (tp = 1s) ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified. Type V BR IR = 5 µA V dc 4153UR-1 CDLL4153 75 75 V (pk) 50 50 V RWM I R1 VR = 50 V dc TA = 25°C n A dc 50 50 1 R2 VR = 50 V dc TA = 150°C µA dc 50 50 C VR = 0; f = 1 Mhz; trr DIM D F G G1 S MILLIMETERS INCHES MIN MAX MIN MAX 1.60 1.70 0.063 0.067 0.41 0.55 0.016 0.022 3.30 3.70 .130 .146 2.54 REF. .100 REF. 0.03 MIN. .001 MIN. FIGURE 1 p F 2.0 2.0 ns 4 4 DESIGN DATA CASE: DO-213AA, Hermetically sealed glass case. (MELF, SOD-80; LL34) FORWARD VOLTAGE LIMITS - ALL TYPES V F1 Limits I F = 100 µA dc V F2 I F =...
