1N4572 Datasheet - Compensated Deuices Incorporated

1N4572 6.4 VOLT NOMINAL ZENER VOLTAGE + 5%

1N4565A-1 THRU 1N4584A-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/452 6.4 VOLT NOMINAL ZENER VOLTAGE + 5% TEMPERATURE COMPENSATED ZENER REFERENCE DIODES METALLURGICALLY BONDED 1N4565 thru 1N4584A and 1N4565A-1 thru 1N4584A-1 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C REVERSE LEAKAGE CURRENT lR = 2µA @ 25°C & VR = 3.

1N4572 Datasheet (243.63 KB)

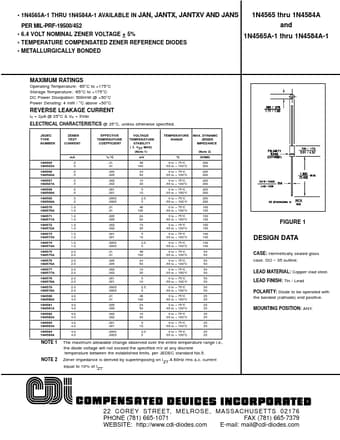

1N4572 Datasheet Preview — Preview of 1N4572 PDF

Datasheet Details

Part number:

1N4572

Manufacturer:

Compensated Deuices Incorporated

File Size:

243.63 KB

Description:

6.4 volt nominal zener voltage + 5%.
