1N4614UR-1 - LEADLESS PACKAGE FOR SURFACE MOUNT

📥 Download Datasheet

Datasheet preview – 1N4614UR-1

Datasheet Details

Part number 1N4614UR-1
Manufacturer Compensated Deuices Incorporated
File Size 109.68 KB
Description LEADLESS PACKAGE FOR SURFACE MOUNT
Datasheet download datasheet 1N4614UR-1 Datasheet
Additional preview pages of the 1N4614UR-1 datasheet.

📁 Similar Datasheet

  • 1N4614UR-1 - Low Noise Zener Diode (Aeroflex)
  • 1N4614UR-1 - METALLURGICALLY BONDED GLASS SURFACE MOUNT 0.5 WATT ZENERS (Microsemi)
  • 1N4614UR-1 - Low Noise Zener Diode (VPT)
  • 1N4614UR-1 - Low Noise Zener Diode (MA-COM)
  • 1N4614UR - GLASS SURFACE MOUNT 0.5 WATT ZENERS (Microsemi)
  • 1N4614UR - ZENER DIODES (Digitron Semiconductors)
  • 1N4614UB - Low Noise Zener Diode (VPT)
  • 1N4614 - ZENER DIODES (Digitron Semiconductors)
  • 1N4614 - 500mW GLASS AXIAL-LEAD LOW NOISE ZENER DIODES (Microsemi)
  • 1N4614 - 500mW Low Noise Zener Diodes (TAITRON)
Other Datasheets by Compensated Deuices Incorporated
  • 1N4614 - LOW CURRENT OPERATION AT 250 uA
  • 1N4614-1 - LOW CURRENT OPERATION AT 250 uA
  • 1N4615 - LOW CURRENT OPERATION AT 250 uA
  • 1N4615-1 - LOW CURRENT OPERATION AT 250 uA
  • 1N4616 - LOW CURRENT OPERATION AT 250 uA
  • 1N4616-1 - LOW CURRENT OPERATION AT 250 uA
  • 1N4617 - LOW CURRENT OPERATION AT 250 uA
  • 1N4617-1 - LOW CURRENT OPERATION AT 250 uA

Full PDF Text Transcription

Click to expand full text

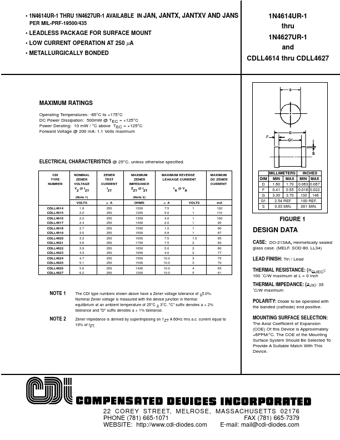

• 1N4614UR-1 THRU 1N4627UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/435 1N4614UR-1 thru 1N4627UR-1 and CDLL4614 thru CDLL4627 • LEADLESS PACKAGE FOR SURFACE MOUNT • LOW CURRENT OPERATION AT 250 µA • METALLURGICALLY BONDED MAXIMUM RATINGS Operating Temperatures: -65°C to +175°C DC Power Dissipation: 500mW @ TEC = +125°C Power Derating: 10 mW / °C above TEC = +125°C Forward Voltage @ 200 mA: 1.1 Volts maximum ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified. CDI TYPE NUMBER NOMINAL ZENER VOLTAGE V @I Z ZT (Note 1) VOLTS CDLL4614 CDLL4615 CDLL4616 CDLL4617 CDLL4618 CDLL4619 CDLL4620 CDLL4621 CDLL4622 CDLL4623 CDLL4624 CDLL4625 CDLL4626 CDLL4627 1.8 2.0 2.2 2.4 2.7 3.0 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.
