1N5520B Datasheet - Compensated Deuices Incorporated

1N5520B LOW REVERSE LEAKAGE CHARACTERISTICS

1N5518-1 THRU 1N5546B-1 AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/437 LOW REVERSE LEAKAGE CHARACTERISTICS LOW NOISE CHARACTERISTICS DOUBLE PLUG CONSTRUCTION METALLURGICALLY BONDED MAXIMUM RATINGS Junction and Storage Temperature: -65°C to +175°C DC Power Dissipation: 500 mW @ +50°C Power Derating: 4 mW / °C above +50°C Forward Voltage @ 200mA: 1.1 volts maximum ELECTRICAL CHARACTERISTICS @ 25°C B-C-D SUFFIX MAXIMUM DC ZENER CURRENT 1ZM.

1N5520B Datasheet (99.17 KB)

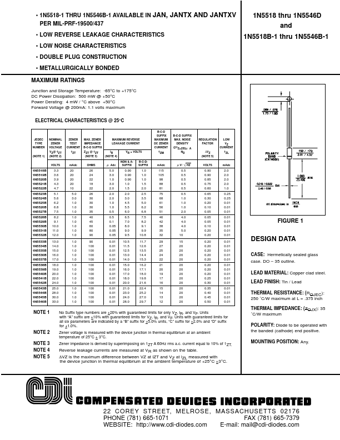

Preview of 1N5520B PDF
1N5520B Datasheet Preview Page 2

Datasheet Details

Part number:

1N5520B

Manufacturer:

Compensated Deuices Incorporated

File Size:

99.17 KB

Description:

Low reverse leakage characteristics.
