1N937
1N937 is 9.0 VOLT NOMINAL ZENER VOLTAGE manufactured by Compensated Deuices Incorporated.

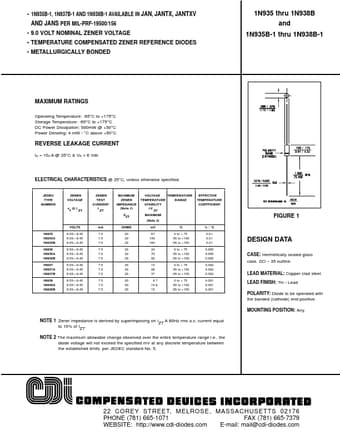

- 1N935B-1, 1N937B-1 AND 1N938B-1 AVAILABLE IN JAN, JANTX, JANTXV
AND JANS PER MIL-PRF-19500/156
- 9.0 VOLT NOMINAL ZENER VOLTAGE
- TEMPERATURE PENSATED ZENER REFERENCE DIODES
- METALLURGICALLY BONDED
1N935 thru 1N938B and 1N935B-1 thru 1N938B-1
MAXIMUM RATINGS
Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500m W @ +50°C Power Derating: 4 m W / °C above +50°C
REVERSE LEAKAGE CURRENT l R = 10µ A @ 25°C & VR = 6 Vdc
ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
JEDEC TYPE NUMBER
ZENER VOLTAGE vz @ I ZT
ZENER TEST CURRENT I ZT
MAXIMUM ZENER IMPEDANCE (Note 1) Z ZT
VOLTAGE TEMPERATURE TEMPERATURE RANGE STABILITY ∆V ZT MAXIMUM (Note 2)
EFFECTIVE TEMPERATURE COEFFICIENT
FIGURE 1
% / °C 0.01 0.01 0.01 0.005 0.005 0.005 0.002 0.002 0.002 0.001 0.001 0.001
VOLTS 1N935 1N935A 1N935B 1N936 1N936A 1N936B 1N937 1N937A 1N937B 1N938 1N938A 1N938B 8.55- 9.45 8.55- 9.45 8.55- 9.45 8.55- 9.45 8.55- 9.45 8.55- 9.45 8.55- 9.45 8.55- 9.45 8.55- 9.45 8.55- 9.45 8.55- 9.45 8.55- 9.45 m A 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5
OHMS 20 20 20 20 20 20 20 20 20 20 20 20 m V 67 139 184 34 70 92 13 28 37 6.7 13.9 19
°C 0 to + 75 -55 to +100 -55 to +150 0 to + 75 -55 to +100 -55 to +150 0 to + 75 -55 to +100 -55 to +150 0 to + 75 -55 to +100 -55 to +150
DESIGN DATA
CASE: Hermetically sealed glass case. DO
- 35 outline. LEAD MATERIAL: Copper clad steel. LEAD FINISH: Tin / Lead POLARITY: Diode to be operated with the banded (cathode) end positive. MOUNTING POSITION: Any.
NOTE 1 Zener impedance is derived by superimposing on l ZT A 60Hz rms a.c. current equal to 10% of l ZT. NOTE 2 The maximum allowable change observed over the entire temperature range i.e., the diode voltage will not exceed the specified m V at any discrete temperature between the established limits, per JEDEC standard No. 5.
22 COREY STREET, MELROSE, MASSACHUSETTS 02176 PHONE (781) 665-1071 FAX (781) 665-7379 WEBSITE: http://.cdi-diodes. E-mail:...
