1N941 - 11.7 VOLT NOMINAL ZENER VOLTAGE

📥 Download Datasheet

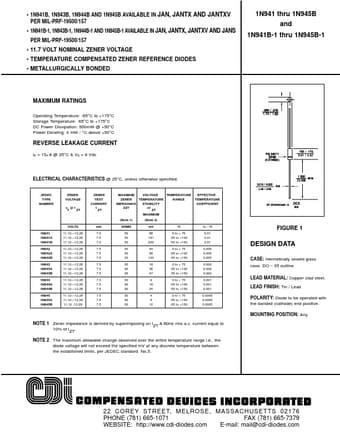

Datasheet preview – 1N941

Datasheet Details

Part number 1N941
Manufacturer Compensated Deuices Incorporated
File Size 112.94 KB
Description 11.7 VOLT NOMINAL ZENER VOLTAGE
Datasheet download datasheet 1N941 Datasheet
Additional preview pages of the 1N941 datasheet.

📁 Similar Datasheet

  • 1N941 - TEMPERATURE COMPENSATED ZENER DIODES (Digitron Semiconductors)
  • 1N941 - 11.7 Volt Temperature Compensated Zener Reference Diodes (Microsemi)
  • 1N941 - ZENER REFERENCE DIODE (Motorola)
  • 1N941-1 - 11.7 Volt Temperature Compensated Zener Reference Diodes (Microsemi)
  • 1N941A - TEMPERATURE COMPENSATED ZENER DIODES (Digitron Semiconductors)
  • 1N941A - 11.7 Volt Temperature Compensated Zener Reference Diodes (Microsemi)
  • 1N941A - ZENER REFERENCE DIODE (Motorola)
  • 1N941A-1 - 11.7 Volt Temperature Compensated Zener Reference Diodes (Microsemi)
  • 1N941B - TEMPERATURE COMPENSATED ZENER DIODES (Digitron Semiconductors)
  • 1N941B - 11.7 Volt Temperature Compensated Zener Reference Diodes (Microsemi)
Other Datasheets by Compensated Deuices Incorporated
  • 1N941A - 11.7 VOLT NOMINAL ZENER VOLTAGE
  • 1N941B-1 - 11.7 VOLT NOMINAL ZENER VOLTAGE
  • 1N941BUR-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • 1N942 - 11.7 VOLT NOMINAL ZENER VOLTAGE
  • 1N942A - 11.7 VOLT NOMINAL ZENER VOLTAGE
  • 1N942B-1 - 11.7 VOLT NOMINAL ZENER VOLTAGE
  • 1N943 - 11.7 VOLT NOMINAL ZENER VOLTAGE
  • 1N943A - 11.7 VOLT NOMINAL ZENER VOLTAGE

Full PDF Text Transcription

Click to expand full text
• 1N941B, 1N943B, 1N944B AND 1N945B AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/157 • 1N941B-1, 1N943B-1, 1N944B-1 AND 1N945B-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/157 • 11.7 VOLT NOMINAL ZENER VOLTAGE • TEMPERATURE COMPENSATED ZENER REFERENCE DIODES • METALLURGICALLY BONDED 1N941 thru 1N945B and 1N941B-1 thru 1N945B-1 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C REVERSE LEAKAGE CURRENT lR = 15µ A @ 25°C & VR = 8 Vdc ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
