1N978B Datasheet - Compensated Deuices Incorporated

1N978B METALLURGICALLY BONDED

1N962B-1 THRU 1N986B-1 AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/117 METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION 1N957 thru 1N986B and 1N962B-1 thru 1N986B-1 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500 mW @ +50°C Power Derating: 4 mW / °C above +50°C Forward Voltage @ 200mA: 1.1volts maximum ELECTRICAL CHARACTERISTICS @ 25°C JEDEC TYPE NUMBER (NOTE 1) NOMINAL ZENER VOLTAGE V .

1N978B Datasheet (110.97 KB)

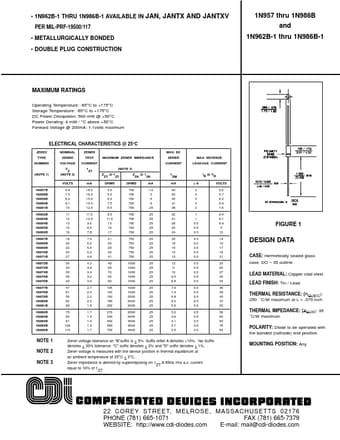

Preview of 1N978B PDF
1N978B Datasheet Preview Page 2

Datasheet Details

Part number:

1N978B

Manufacturer:

Compensated Deuices Incorporated

File Size:

110.97 KB

Description:

Metallurgically bonded.
