CD1A20 - 1 AMP SCHOTTKY BARRIER RECTIFIER CHIPS

1N5819 AND 1N6761 AVAILABLE IN JANHC AND JANKC PER MIL PRF-19500/586 1 AMP SCHOTTKY BARRIER RECTIFIER CHIPS SILICON DIOXIDE PASSIVATED COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES, WITH THE EXCEPTION OF SOLDER REFLOW CD5817 thru CD5819 and CD6759 thru CD6761 and CD1A20 thru CD1A100 MAXIMUM RATINGS Operating Temperature: -55°C to +125°C Storage Temperature: -55°C to +150°C Average Rectiﬁed Forward Current: 1.0 AMP @ +55°C Derating: 14.3 mA.

CD1A20_CompensatedDeuicesIncorporated.pdf

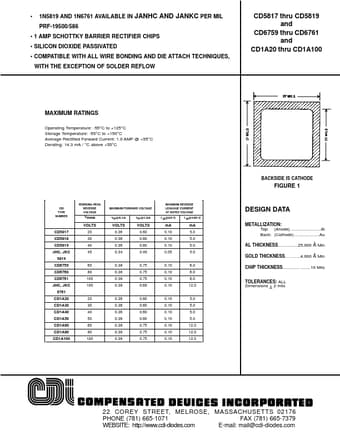

CD1A20 Datasheet Preview — Preview of CD1A20 PDF

Datasheet Details

Part number:

CD1A20

Manufacturer:

Compensated Deuices Incorporated

File Size:

118.32 KB

Description:

1 amp schottky barrier rectifier chips.
