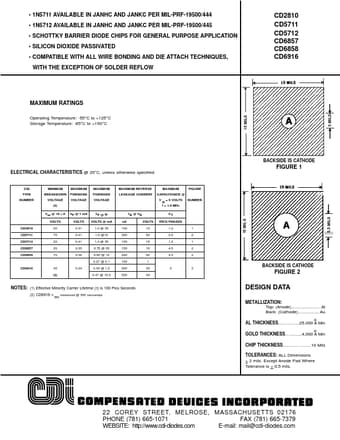

CD2810 Datasheet (Compensated Deuices Incorporated) - SCHOTTKY BARRIER DIODE CHIPS FOR GENERAL PURPOSE APPLICATION

CD2810, SCHOTTKY BARRIER DIODE CHIPS FOR GENERAL PURPOSE APPLICATION

1N5711 AVAILABLE IN JANHC AND JANKC PER MIL-PRF-19500/444 1N5712 AVAILABLE IN JANHC AND JANKC PER MIL-PRF-19500/445 SCHOTTKY BARRIER DIODE CHIPS FOR GENERAL PURPOSE APPLICATION SILICON DIOXIDE PASSIVATED COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES, WITH THE EXCEPTION OF SOLDER REFLOW CD2810 CD5711 CD5712 CD6857 CD6858 CD6916 MAXIMUM RATINGS Operating Temperature: -55°C to +125°C Storage Temperature: -65°C to +150°C 15 MILS 3 MILS
