CD3017B Datasheet - Compensated Deuices Incorporated

CD3017B 1 WATT CAPABILITY

1N3016B THRU 1N3045B AVAILABLE IN JANHC PER MIL-PRF-19500/115 1 WATT CAPABILITY WITH PROPER HEAT SINKING ALL JUNCTIONS COMPLETELY PROTECTED WITH SILICON DIOXIDE COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES, WITH THE EXCEPTION OF SOLDER REFLOW CD3016B thru CD3045B MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C Forward Voltage @ 200mA: 1.2 volts maximum ELECTRICAL CHARACTERISTICS @ 25°C CDI TYPE N.

CD3017B Datasheet (113.10 KB)

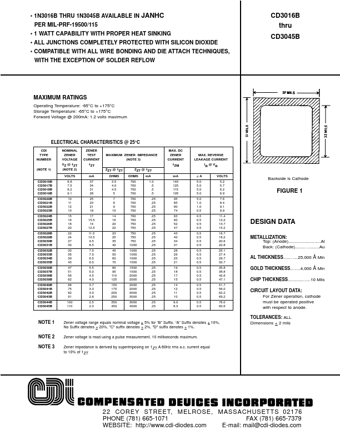

CD3017B Datasheet Preview — Preview of CD3017B PDF

Datasheet Details

Part number:

CD3017B

Manufacturer:

Compensated Deuices Incorporated

File Size:

113.10 KB

Description:

1 watt capability.
