CD4570 Datasheet - Compensated Deuices Incorporated

CD4570 6.4 VOLT ZENER VOLTAGE + 5%

1N4565A THRU 1N4584A AVAILABLE IN JANHC AND JANKC PER MIL-PRF-19500/452 ALL JUNCTIONS COMPLETELY PROTECTED WITH SILICON DIOXIDE 6.4 VOLT ZENER VOLTAGE + 5% ELECTRICALLY EQUIVALENT TO 1N4565 THRU 1N4584A COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES, WITH THE EXCEPTION OF SOLDER RELOW MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C CD4565 thru CD4584A REVERSE LEAKAGE CURRENT lR = 2 µA @ 25.

CD4570_CompensatedDeuicesIncorporated.pdf

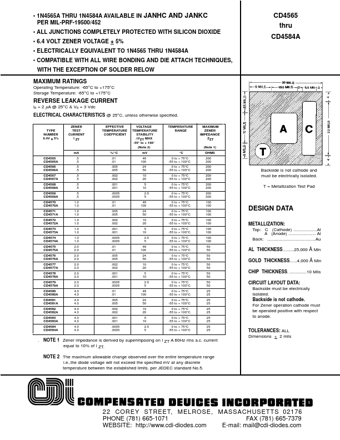

Preview of CD4570 PDF
CD4570 Datasheet Preview Page 2

Datasheet Details

Part number:

CD4570

Manufacturer:

Compensated Deuices Incorporated

File Size:

253.16 KB

Description:

6.4 volt zener voltage + 5%.
