CDLL4101 LEADLESS PACKAGE FOR SURFACE MOUNT

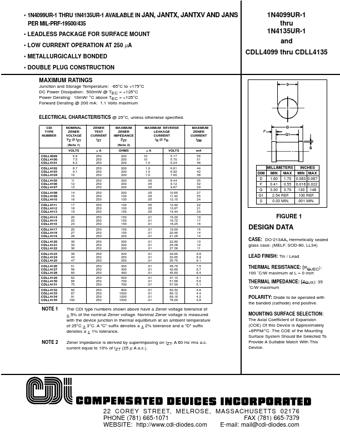

www.DataSheet4U.com 1N4099UR-1 THRU 1N4135UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/435 LEADLESS PACKAGE FOR SURFACE MOUNT LOW CURRENT OPERATION AT 250 µA METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION MAXIMUM RATINGS Junction and Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ TEC = +125°C Power Derating: 10mW/ °C above TEC = +125°C Forward Derating @ 200 mA: 1.1 Volts maximum ELECTRICAL CHARACTERISTICS.

CDLL-4099.pdf

CDLL4101 Datasheet Preview — This datasheet PDF includes multiple part numbers: CDLL4101, CDLL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CDLL4101, CDLL

Manufacturer:

Compensated Deuices Incorporated

File Size:

125.15 KB

Description:

Leadless package for surface mount.

Note:

This datasheet PDF includes multiple part numbers: CDLL4101, CDLL.
Please refer to the document for exact specifications by model.
