CDLL4121 Datasheet - Compensated Deuices Incorporated

CDLL4121 LEADLESS PACKAGE FOR SURFACE MOUNT

www.DataSheet4U.com 1N4099UR-1 THRU 1N4135UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/435 LEADLESS PACKAGE FOR SURFACE MOUNT LOW CURRENT OPERATION AT 250 µA METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION MAXIMUM RATINGS Junction and Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ TEC = +125°C Power Derating: 10mW/ °C above TEC = +125°C Forward Derating @ 200 mA: 1.1 Volts maximum ELECTRICAL CHARACTERISTICS.

CDLL4121 Datasheet (125.15 KB)

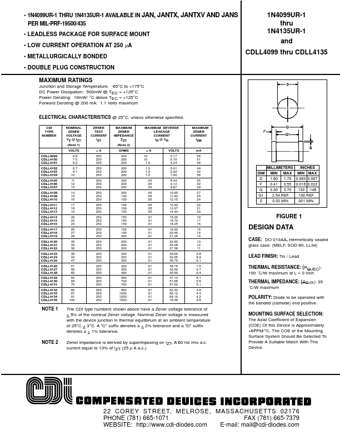

CDLL4121 Datasheet Preview — Preview of CDLL4121 PDF

Datasheet Details

Part number:

CDLL4121

Manufacturer:

Compensated Deuices Incorporated

File Size:

125.15 KB

Description:

Leadless package for surface mount.
