CDLL4920 Datasheet - Compensated Deuices Incorporated

CDLL4920 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

TEMPERATURE COMPENSATED ZENER REFERENCE DIODES LEADLESS PACKAGE FOR SURFACE MOUNT 19.2 VOLT NOMINAL ZENER VOLTAGE + 5% LOW NOISE DOUBLE PLUG CONSTRUCTION METALLURGICALLY BONDED CDLL4916 thru CDLL4932A MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C REVERSE LEAKAGE CURRENT lR = 15µA @ 25°C & VR = 12Vdc ELECTRICAL CHARA.

CDLL4920 Datasheet (77.80 KB)

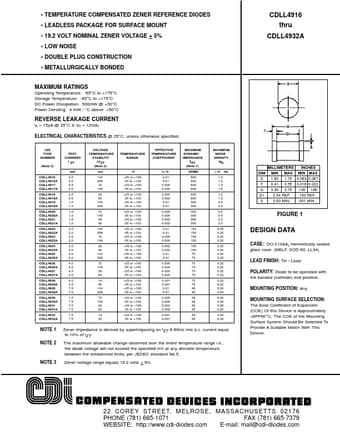

CDLL4920 Datasheet Preview — Preview of CDLL4920 PDF

Datasheet Details

Part number:

CDLL4920

Manufacturer:

Compensated Deuices Incorporated

File Size:

77.80 KB

Description:

Temperature compensated zener reference diodes.
