CDLL5542B Datasheet - Compensated Deuices Incorporated

CDLL5542B ZENER DIODE/ 500mW

1N5518BUR-1 THRU 1N5546BUR-1 AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/437 ZENER DIODE, 500mW LEADLESS PACKAGE FOR SURFACE MOUNT LOW REVERSE LEAKAGE CHARACTERISTICS METALLURGICALLY BONDED 1N5518BUR-1 thru 1N5546BUR-1 and CDLL5518 thru CDLL5546D MAXIMUM RATINGS Junction and Storage Temperature: -65°C to +125°C DC Power Dissipation: 500 mW @ TEC = +125°C Power Derating: 10 mW / °C above TEC = +125°C Forward Voltage @ 200mA: 1.1 volts m.

CDLL5542B_CompensatedDeuicesIncorporated.pdf

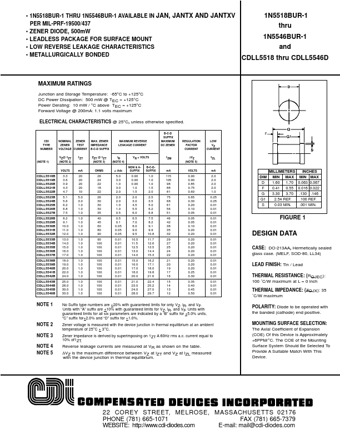

Preview of CDLL5542B PDF
CDLL5542B Datasheet Preview Page 2

Datasheet Details

Part number:

CDLL5542B

Manufacturer:

Compensated Deuices Incorporated

File Size:

94.20 KB

Description:

Zener diode/ 500mw.
