DSB1A100 Datasheet - Compensated Deuices Incorporated

DSB1A100 1 AMP SCHOTTKY BARRIER RECTIFIERS

1N5819-1 AND 1N6761-1AVAILABLE IN JAN,JANTX, JANTXV, AND JANS PER MIL-PRF-19500/586 1 AMP SCHOTTKY BARRIER RECTIFIERS HERMETICALLY SEALED METALLURGICALLY BONDED 1N5819 and DSB5817 and DSB5818 and 1N6759 thru 1N6761 and DSB1A20 thru DSB1A100 MAXIMUM RATINGS Operating Temperature: -55°C to +125°C Storage Temperature: -55°C to +150°C Average Rectified Forward Current: 1.0 AMP @TL +55°C, L = 3/8” Derating: 14 mA / °C above TL = +55°C, L = 3/8” ELECTRICAL CH.

DSB1A100 Datasheet (37.05 KB)

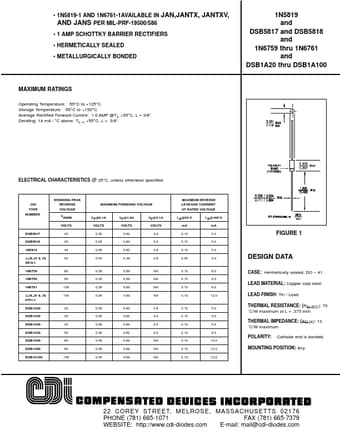

Preview of DSB1A100 PDF
DSB1A100 Datasheet Preview Page 2

Datasheet Details

Part number:

DSB1A100

Manufacturer:

Compensated Deuices Incorporated

File Size:

37.05 KB

Description:

1 amp schottky barrier rectifiers.
