(cbt-x0-x) 1 hole base mounted terminations.

Note:

This datasheet PDF includes multiple part numbers: CBT-50-2, CBT-10-1.
Please refer to the document for exact specifications by model.

CBT-50-2, CBT-10-1, (CBT-x0-x) 1 Hole Base Mounted Terminations

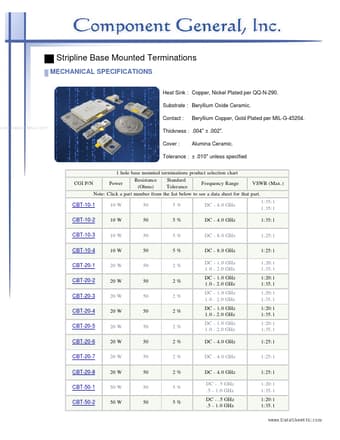

__ Stripline Base Mounted Terminations _ MECHANICAL SPECIFICATIONS Heat Sink : Copper, Nickel Plated per QQ-N-290.

Substrate : Beryllium Oxide Ceramic.

Contact : www.DataSheet4U.com Beryllium Copper, Gold Plated per MIL-G-45204.

Thickness : .004" ± .002".

Cover : Alumina Ceramic.

Tolerance : ± .010" unless specified 1 hole base mounted terminations product selection chart Resistance Standard Frequency Range VSWR (Max.) CGI P/N Power (Ohms) Tolerance Note: Click a part number from the list bel
