CCR-100-2_ComponentGeneral.pdf
Datasheet Details
Part number:
CCR-375-1B, CCR-100-2
Manufacturer:
Component General
File Size:
632.75 KB
Description:
(ccr-xxx) surface mount resistors with cover & tabs.
Note:
This datasheet PDF includes multiple part numbers: CCR-375-1B, CCR-100-2.
Please refer to the document for exact specifications by model.

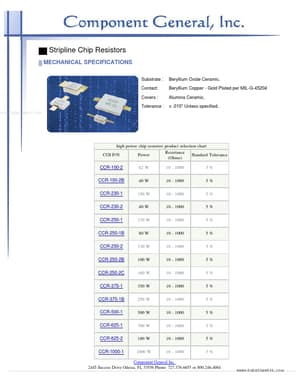

CCR-375-1B, CCR-100-2, (CCR-xxx) Surface Mount Resistors With Cover & Tabs
__ Stripline Chip Resistors _ MECHANICAL SPECIFICATIONS Substrate : Contact: Covers : Tolerance : www.DataSheet4U.com Beryllium Oxide Ceramic.
Beryllium Copper - Gold Plated per MIL-G-45204 Alumina Ceramic.
± .010" Unless specified.
high power chip resistors product selection chart Resistance Standard Tolerance CGI P/N Power (Ohms) CCR-100-2 CCR-100-2B CCR-230-1 CCR-230-2 CCR-250-1 CCR-250-1B CCR-250-2 CCR-250-2B CCR-250-2C CCR-375-1 CCR-375-1B CCR-500-1 CCR-625-1 CCR-625-2 CCR-1000-1 62 W 40
