2N6285 - PNP Darlington Power Silicon Transistor

📥 Download Datasheet

Datasheet Details

Part number 2N6285
Manufacturer Comset Semiconductors
File Size 129.67 KB
Description PNP Darlington Power Silicon Transistor
Datasheet download datasheet 2N6285 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2N6285 DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS ON Semiconductor
2N6285 DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS Motorola
2N6285 Bipolar NPN Device Seme LAB
2N6285 Silicon PNP Power Transistors Savantic
2N6285 COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS Central Semiconductor

Other Datasheets by Comset Semiconductors

Part Number Description
2N6282 (2N6282 - 2N6284) NPN Silicon Darlington Power Transistor
2N6283 (2N6282 - 2N6284) NPN Silicon Darlington Power Transistor
2N6284 (2N6282 - 2N6284) NPN Silicon Darlington Power Transistor
2N6286 PNP Darlington Power Silicon Transistor
2N6287 PNP Darlington Power Silicon Transistor

Full PDF Text Transcription

Click to expand full text

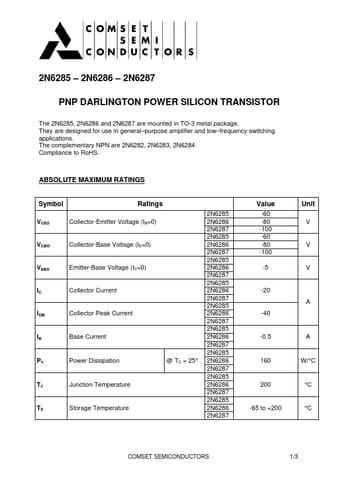

2N6285 – 2N6286 – 2N6287 PNP DARLINGTON POWER SILICON TRANSISTOR The 2N6285, 2N6286 and 2N6287 are mounted in TO-3 metal package. They are designed for use in general–purpose amplifier and low–frequency switching applications. The complementary NPN are 2N6282, 2N6283, 2N6284 Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol VCEO Ratings Collector-Emitter Voltage (IB=0) 2N6285 2N6286 2N6287 2N6285 2N6286 2N6287 2N6285 2N6286 2N6287 2N6285 2N6286 2N6287 2N6285 2N6286 2N6287 2N6285 2N6286 2N6287 2N6285 2N6286 2N6287 2N6285 2N6286 2N6287 2N6285 2N6286 2N6287 Value -60 -80 -100 -60 -80 -100 -5 Unit V VCBO Collector-Base Voltage (IE=0) V www.DataSheet.net/ VEBO Emitter-Base Voltage (IC=0) V IC Collector Current -20 A -40 ICM Collector Peak Current IB Base Current -0.
